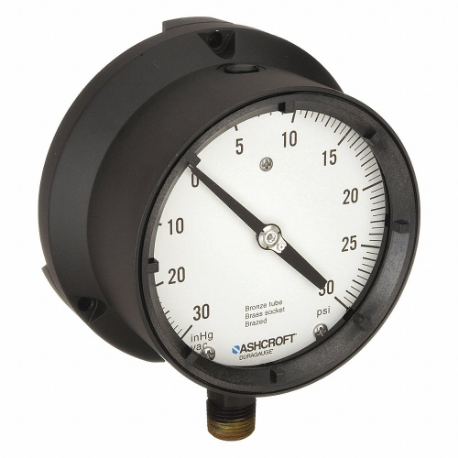

| Item | Compound Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Grade | Grade 2A |
| Accuracy Scale | Full Scale |
| Ambient Temp. Range | +20°F to +150°F |
| Application | Chemical Industries, Mining, Oil And Gas Industry, Power Industries, Refrigeration, Turbines And Compressors, Water Pressure Testing, Water Purification Or Irrigation , Process |
| Basic Gauge Case Material | Plastic |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Bronze |
| Bezel Material | Polypropylene |
| Blowout Safety Back | Yes |
| Bolt Circle Dia. | 5 3/8" |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Depth | 3 3/8" |
| Case Dia. | 5.812" |
| Case Finish | Epoxy Coated |
| Cleaned For Oxygen Service | No |
| Color | Black |
| Compatible Process Media | Chemical And Petrochemical, Metals, Natural Gas And LNG, Oil And Gas, Water And Wastewater |
| Connection Location | Lower |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| For Use With | Media Compatible With Bronze |
| Freeze Resistant Movement | No |
| Gauge Case Color | Black |
| Gauge Case Liquid | Glycerin |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/2" |
| Gauge Filled With | Glycerin |
| Gauge Mounting Method | Surface |
| Gauge Nominal Dial Size | 4 1/2" |
| Gauge Panel Mountable | Yes |
| Gauge Socket Material | Bronze |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | IP66, NEMA 4X |
| Lens Material | Glass , Plastic |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Mounting Hardware Included | No |
| Mounting Type | Flush Mount, Stem Mount, Surface Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 400 |
| Movement Type | Rotary |
| Nominal Dial Size | 4 1/2" |
| Non-sparking | No |
| Panel Mount Characteristics | 3 0.218 Dia Holes On 5-3/8 Dia Bolt Circle |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Compound Gauge |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Range | 30 psi to 0 psi to 30 psi |
| Pressure Range Type | Compound |
| Primary Pressure Scale Color | Black |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/2" |
| Process Connection Type | NPT |
| Process Temperature Range | +20°F to +150°F |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass |
| Vibration Resistance | Liquid Filled |
| Bolt Circle Diameter | 5.375" |
| Case Construction | Solid Front With Pressure Relief Back |
| Case Diameter | 5.812" |
| Dial Face Color | White |
| Gauge Case Material | Aluminum |
| Includes Calibration Certificate | No |
| Lens Material - Gauge | Glass |
| Manufacturer Warranty Length | 10 yrs. |
| Standards | ASME, CRN |
