ARO PD05R-ASS-STT-B Double Diaphragm Pump Air Operated 200f | AE7DRK 5XA60

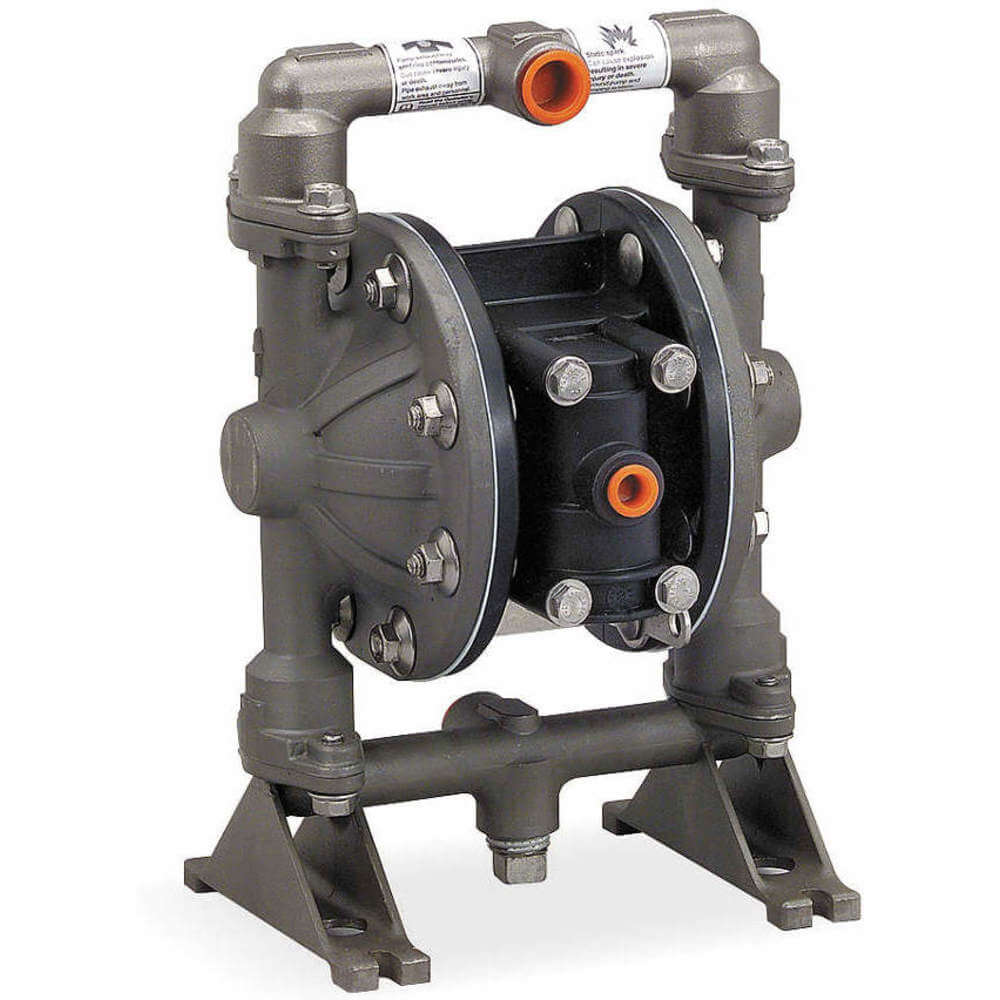

ARO PD05R-ASS-STT-B Double Diaphragm Pump Air Operated 200f

Item: AE7DRK Model: PD05R-ASS-STT-BCross Ref: 5XA60
In Stock

Get it by Monday, Jun 16

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€3,076.35 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemDouble Diaphragm Pump
Air Consumption20 SCFM
Ball MaterialPTFE
Center Section MaterialPlastic
Check Seat MaterialStainless Steel
Compatible ChemicalsAlcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel Exhaust Fluid, Oil-Based Paint, Oils, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Water
Connection Size1/2"
Connection TypeNPTF
Diaphragm MaterialPTFE
Display Qty1
Flow Rate @ 100 Psi12.4 GPM
Flow Rate @ 40 Psi9.5 GPM
Flow Rate @ 50 Psi10.9 GPM
Flow Rate @ 60 Psi11.7 GPM
Flow Rate @ 70 Psi12.2 GPM
Flow Rate @ 80 Psi12.3 GPM
Flow Rate @ 90 Psi12.3 GPM
For Use With Potable SystemsYes
GradeGrade 316
Housing MaterialStainless Steel
Inlet Size1/4"
Manifold Connection TypeSingle Port
Max. Flow Rate12.4 GPM
Max. Head255 ft.
Max. Media Temp.225°F
Max. Operating Pressure100 psi
Max. Solid Dia.3/32"
Max. Viscosity15000 cPS
Media Discharge LocationCenter
Media Intake LocationBottom, Center, Side
Min. Media Temp.40°F
Mounting Hardware MaterialStainless Steel
Npshr39 ft.
Operation TypeAir Operated
Overall Height11 4/5"
Overall Length8 1/5"
Overall Width8.1"
Pump Assembly TypeBolt
Self PrimingYes
Self Priming Dry10 ft.
Self Priming Wet15 ft.
SeriesCompact Series
Valve MaterialPTFE
Valve TypeBall
Warranty5 yrs.
Air Inlet1/4" NPT
Chemical CompatibilityAlcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel Exhaust Fluid, Oil-Based Paint, Oils, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Water
Fluid Discharge Connection1/2" NPTF
Fluid Intake Connection1/2" NPTF
Manifold ConnectionSingle Port
Manufacturers Warranty Length5 yrs.
Max. Discharge Pressure100 psi
Max. Feet Of Head255 ft.
Max. Media Temperature225°F
Min. Media Temperature40°F
Nameplate VoltageN
Power SourceAir
PrimingSelf Priming
Rated Air Pressure100 psi
Series FamilyCompact

Shipping Info:

Ship weight (kg) 7.785
Ship height (cm)29.97
Ship length (cm)20.83
Ship width (cm)20.57
HS code8413500050
Country of OriginUS

Product Variants

ProductModelHousing MaterialDiaphragm MaterialCheck Seat MaterialMax. Solid Dia.Max. Media Temp.Valve TypeValve MaterialMax. Flow RatePrice
FLOJET N5100020G Diaphragm Pump Air Operated Acetal 120f | AA4PGJ 12W294 N5100020GAcetalVitonViton1/8"120°FBallPolypropylene2.5 GPM€316.10
FLOJET G573215Z Double Diaphragm Pump 1/2 Inch 5.0 Gpm | AC3XFM 2XE84 G573215ZPolypropyleneVitonViton1/8"120°FBallViton5 GPM€348.37
FLOJET G575215Z Double Diaphragm Pump Air Operated 120f | AE2LUD 4YD53 G575215ZPolypropyleneSantopreneSantoprene1/8"120°FBall-5 GPM€258.32
DAYTON 22A592 Pump 3/4 Inch Npt 32 Gpm Buna N | AB6QHT 22A592AluminumBuna NAluminum1/16"180°FBallBuna N32 GPM€1,541.52
DAYTON 22A594 Pump 1-1/2 Inch Npt 50 Gpm Buna N | AB6QHV 22A594AluminumBuna NAluminum3/16"180°FBallBuna N50 GPM€1,853.07
DAYTON 22A595 Pump 3 Inch Flange 215 Gpm Buna N | AB6QHW 22A595AluminumBuna NBuna N13/32"180°FBallBuna N215 GPM€4,817.77
DAYTON 22A596 Pump 3 Inch Flange 215 Gpm Santoprene | AB6QHX 22A596AluminumSantopreneSantoprene13/32"212°FBallSantoprene215 GPM€3,952.14
