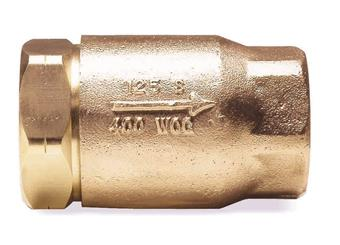

APOLLO VALVES 6110401 Ball Cone Spring Check Valve Bronze 3/4

Item: AA9DDR Model: 6110401Cross Ref: 1CKT8
In Stock

Get it by Monday, Jun 16

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€84.41 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemBall Cone Spring Check Valve
ColorBronze
Connection TypeFNPT
Cracking Pressure0.5 psi
Length2 7/8"
Max. Steam Pressure125 psi
Max. Temp.353°F
Max. Water Pressure400 psi
Mounting PositionHorizontal/Vertical
Overall Height1 5/8"
Seat MaterialRPTFE
Series61 Series Check Valves
Size3/4"
Spring MaterialStainless Steel
Suitable For Central Heating WaterYes
Width2 7/8"
3-a ComplianceNot Rated
Ball MaterialRPTFE
Body MaterialBronze
Check MechanismBall
Connection Gender - Side 1Female
Connection Gender - Side 2Female
Connection Size - Side 13/4"
Connection Size - Side 23/4"
Connection Type - Side 1NPT
Connection Type - Side 2NPT
Flow Coefficient (cv)3.53
Flow Rate3.53 GPM
For MediaSteam
Includes CounterweightNo Counterweight
Max. Pressure (cwp)400 psi
Max. Pressure (steam)125 psi
Media Temp. Range33°F to 406°F
Mounting OrientationHorizontal, Vertical
Operating Temperature - Maximum406°F
Operating Temperature - Minimum33°F
Overall Length2.875"
Pipe Size3/4"
Seal MaterialEPDM
Silent CheckStandard
StandardsBUILD AMERICA BUY AMERICA (BABA) ACT, BUY AMERICAN ACT (BAA), CRN
Vacuum Service RatingNot Rated
Valve Body StyleInline
Valve Series61
Valve Ways2-Way

Shipping Info:

Ship weight (kg) 0.3375
Ship height (cm)10.16
Ship length (cm)6.6
Ship width (cm)5.33
HS code8481301090
Country of OriginUS

Product Variants

ProductModelConnection TypePipe SizeOverall HeightHeightMax. Temp.Seat MaterialCracking PressureMax. Water PressurePrice
APOLLO 61-101-01 Ball Cone Spring Check Valve Bronze 1/4 | AA9DDN 1CKT5 6110101FNPT x FNPT1/4"1 1/8"0 mm353°FRPTFE0.5 psi400 psi€42.72
APOLLO 61-102-01 Ball Cone Spring Check Valve Bronze 3/8 | AA9DDP 1CKT6 6110201FNPT x FNPT3/8"1 1/8"0 mm353°FRPTFE0.5 psi400 psi€42.20
APOLLO 61-103-01 Ball Cone Spring Check Valve Bronze 1/2 | AA9DDQ 1CKT7 6110301FNPT-1 1/8"-353°FRPTFE0.5 psi400 psi€52.81
APOLLO 61-105-01 Ball Cone Spring Check Valve Bronze 1 Inch | AA9DDT 1CKT9 6110501FNPT x FNPT1"1 3/4"0 mm353°FRPTFE0.5 psi400 psi€88.33
APOLLO 61-106-01 Ball Cone Spring Check Valve Bronze 1-1/4 | AA9DDU 1CKU1 6110601FNPT x FNPT1 1/4"2 1/8"63.5 mm353°FRPTFE0.5 psi400 psi€134.83
APOLLO 61-107-01 Ball Cone Spring Check Valve Bronze Fnpt | AA9DDV 1CKU2 6110701FNPT x FNPT1 1/2"2 1/2"69.85 mm353°FRPTFE0.5 psi400 psi€179.42
APOLLO 61-108-01 Ball Cone Spring Check Valve 2 Inch Fnpt | AA9DDW 1CKU3 6110801FNPT x FNPT2"3"95.25 mm353°FRPTFE0.5 psi400 psi€287.36
