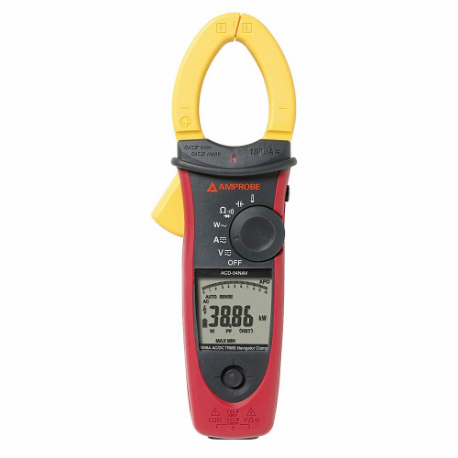

AMPROBE ACDC-54NAV Clamp-On Power Meter, CAT IV, 1000 A | CN8KQG

AMPROBE ACDC-54NAV Clamp-On Power Meter, CAT IV, 1000 A

Item: CN8KQG Model: ACDC-54NAVCross Ref: 6NZJ0
See variants (18)
In Stock
Check Availability

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€909.66 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemClamp-On Power Meter
Audible ContinuityYes
Auto Power OffYes
Auto RangingYes
Basic Ac Voltage Accuracy-1% to +1% , ±1%
Basic Dc Current Accuracy-1.5% to +1.5% , ± 1.5%
Basic Dc Voltage Accuracy-/+0.70% , -0.7% to +0.7%
Battery ChemistryAlkaline
Capacitance Measurement Accuracy-1.9% to +1.9%
Current Accuracy-1.5% to +1.5%
Data HoldYes
Diode TestNo
Frequency Measurement Accuracy-0.5% to +0.5% , ±0.50%
IncludesBanana K-Type Thermocouple, Carrying Case, Test Leads
Intrinsically SafeNo
Jaw Opening1 3/5"
Max. Ac Voltage1000V AC
Max. Amps1000A
Max. Capacitance Measurement4 mF
Max. Dc Amps1000A
Max. Dc Voltage1000V
Max. Operating Temp.1832°F
Maximum Capacitance Measurement4 mF
Maximum Frequency Measurement10 kHz
Min. Ac Amps Measurement100A
Min. Ac Voltage Measurement100V
Min. Dc Current Measurement100A
Min. Frequency Measurement20 Hz
Min. Operating Temp.-50°F
Min. Wattage10 kW
Minimum Ac Current Measurement100A
Minimum Ac Voltage Measurement100V
Minimum Capacitance Measurement400 µF
Minimum Dc Current Measurement100A
Minimum Dc Voltage Measurement100V
Minimum Frequency Measurement20 Hz
Minimum Power10 kW
Non-contact Voltage DetectorYes
Parameters MeasuredAC Voltage, DC Voltage, AC Current, DC Current, Capacitance, Frequency, Resistance, Temperature (K)
Peak CaptureYes
Peak HoldYes
Power Measurement Accuracy-2.5% to +2.5%
Resistance Measurement Accuracy-1% to +1%
Safety RatingCat IV
Sub-brandAmprobe
Temp. Measurement Accuracy-1% to +1%
True RmsYes
Wattage Measurement Accuracy-2.5% to +2.5%
Basic Ac Current Accuracy-1.5% to +1.5%
Batteries IncludedYes
Battery SizeAA
Calibration Frequency20-10 KHz
Display TypeBacklit Digital Display
Manufacturers Warranty Length1 yr.
Max. Ac Current1000A
Max. Dc Current1000A
Max. Resistance100 K ohms
Maximum Operating Temperature1832°F
Minimum Operating Temperature-50°F
Minimum Resistance Measurement1 kiloohms
Thermometer TypeK-Type

Shipping Info:

Ship weight (kg) 1.449
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginTW

Product Variants

ProductModelSafety RatingMax. Ac VoltageJaw StyleAc Response CalculationCalibration CertificateMax. Dc VoltageCountsMax. Dc AmpsPrice
AMPROBE ACD-50NAV Clamp-On Power Meter, CAT IV, 600 A | CN8KQH ACD-50NAVCat IV1000V AC---1000V--€525.03
AMPROBE ACD-51NAV Clamp-On Power Meter, CAT IV, 600 A | CN8KQJ ACD-51NAVCat IV1000V AC---1000V--€581.71
AMPROBE ACDC-52NAV Clamp-On Power Meter, CAT IV, 600 A | CN8KQK ACDC-52NAVCat IV1000V AC---1000V-600A€625.94
AMPROBE AC68C Digital Clamp Meter, Clamp-Jaw Jaw, Cat Ii 600V/Cat Iii 300V, Trms, 600 A | CN8KQN AC68CCat II 600V, Cat III 300V600V ACClamp OnTRMSNo600V4000600A€561.68
AMPROBE ACDC-3400 IND Digital Clamp Meter, Clamp-Jaw Jaw, Cat Iii 1000V/Cat Iv 600V, Trms | CN8KQQ ACDC-3400 INDCat III 1000V, Cat IV 600V750V ACClamp OnTRMSNo1000V66001000A€863.51
AMPROBE AMP-330 Digital Clamp Meter, Clamp-Jaw Jaw, Cat Iii 1000V/Cat Iv 600V, Trms, 600 A | CN8KQR AMP-330Cat III 1000V, Cat IV 600V1000V ACClamp OnTRMSNo1000V60001000A€411.39
AMPROBE LH41A Digital Clamp Meter, Clamp-Jaw Jaw, Cat Iii 300V, Avg, 40 A | CN8KQT LH41ACat III 300V-Clamp OnAverageNo-400040A€907.70
