AIGNEP 60040-6 Union, 6mm Tube, Stainless Steel | CL7UYV

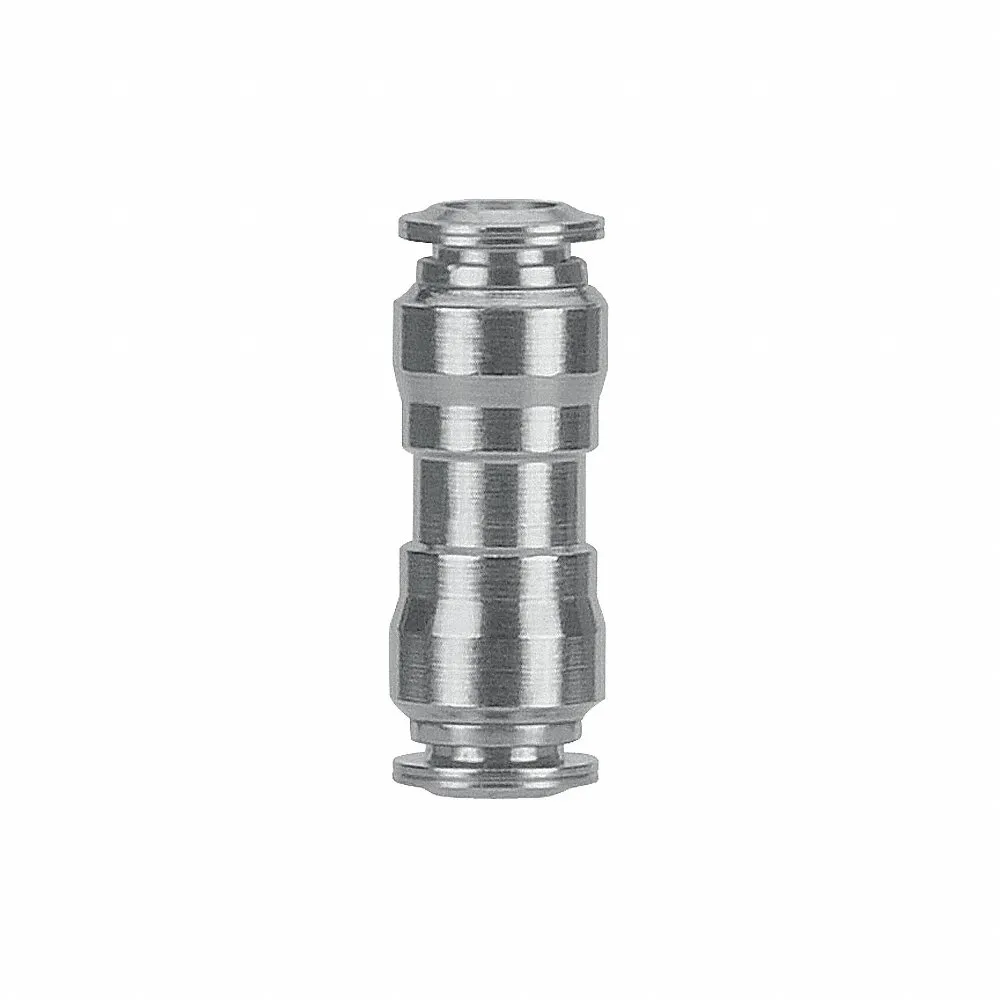

AIGNEP 60040-6 Union, 6mm Tube, Stainless Steel

Item: CL7UYV Model: 60040-6Cross Ref: 49JX79
Limited Availability
€15.34 /unit
Request a Quote

Payment

Delivery

Product Specifications:

ApplicationAir
Basic MaterialStainless Steel
Body MaterialStainless Steel
ColorSilver
Compatible Tube MaterialCopper, Nylon, Polyethylene, Polyurethane
Fitting MaterialStainless Steel
Fittings Sub-categoryUnions
System Of MeasurementMetric
Fitting Side A Connection TypePush-to-Connect
Fitting Side A Tube Outer Diameter6 mm
Fitting Side B Connection TypePush-to-Connect
Fitting Side B Tube Outer Diameter6 mm
Includes Pre-applied Thread SealantYes
Material Grade316L
Maximum Operating Pressure290 psi
Maximum Operating Temperature437°F
Minimum Operating Temperature5°F
Overall Length1 3/8"
Release Ring MaterialPTFE, FKM
Specific Fitting ShapeStraight Connector
StandardsISO 14743:2004, NSF/ANSI 169, PED 2014/68/UE, REACH 1907/2006, ROHS 2011/65/CE, SILICONE FREE CERTIFIED
Thread Sealant TypeFKM

Shipping Info:

Ship weight (kg) 0.0045
Ship length (cm)3.49
Country of OriginIT
