BURNDY K2A29U Two Conductor Lugs 6awg 2.56in | AB6RDU 22C190

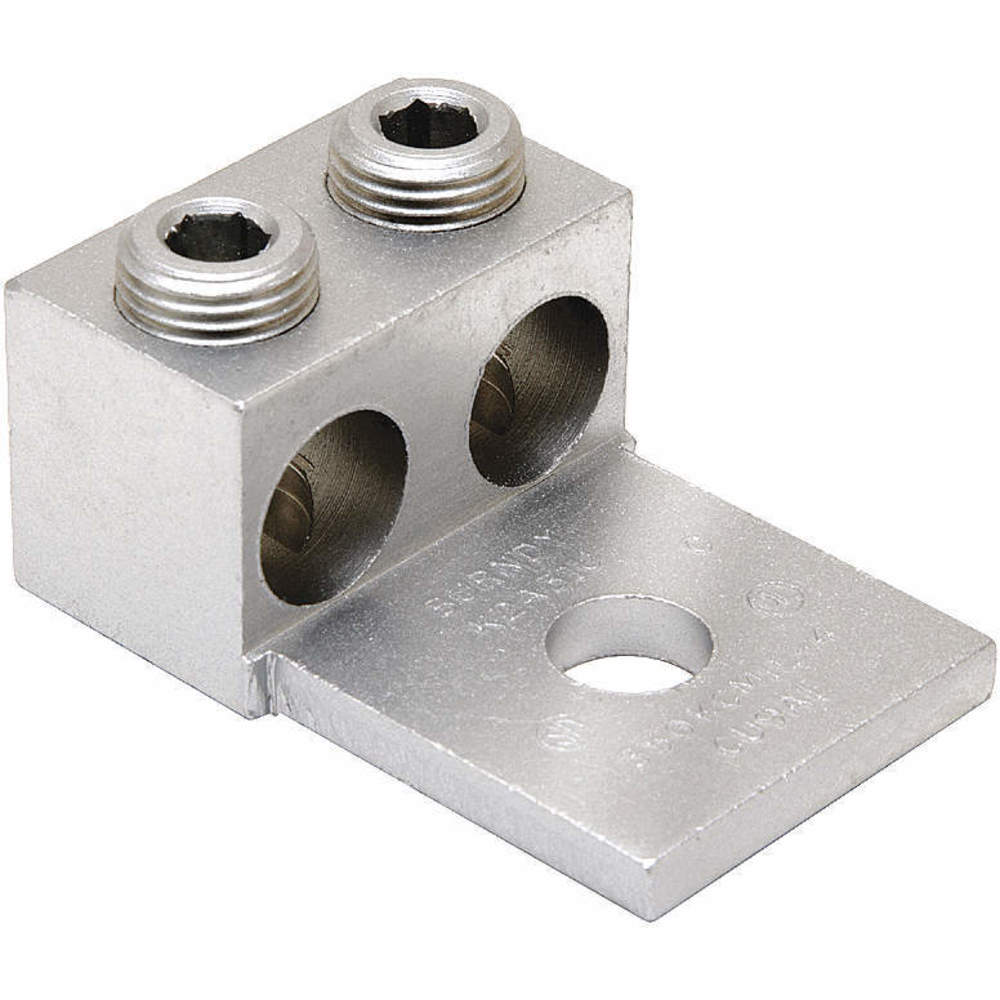

BURNDY K2A29U Two Conductor Lugs 6awg 2.56in

Item: AB6RDU Model: K2A29UCross Ref: 22C190
In Stock

Get it by Tuesday, Nov 25

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€57.36
10% off
€51.63 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Two Conductor Lug
Body Material Aluminium
Compatible With Product Type Aluminum Cable, Copper Cable
Connection Orientation Dual Rated Lug
Connector Type Lug
Contact Finish Tin
Finish Tin Coated
For Conductor Material Aluminum, Copper
For Stranded Copper Wire Size 250 kcmil
For Stranded Copper Wire Size - Minimum 6 AWG
For Stud Size 3/8"
Head Type Slotted
Hole Dia. 2/5"
Hole Spacing Not Applicable
Length 2 14/25"
Length (straight Wireway) 2 14/25"
Material Aluminium
Max. Conductor Size 250 kcmil
Min. Conductor Size 6 AWG
No. Of Conductors 2
Number Of Conductors 2
Number Of Holes 1
Overall Depth 1 11/16"
Screw Size 3/8"
Special Features Providing Low Contact Resistance
Stud Size 3/8"
Terminal Material Aluminium
Tongue Width 1.66"
Type Commercial
Width 1.66"
Wire Material Copper

Shipping Info:

Ship weight (kg) 0.045
Ship height (cm)3.05
Ship length (cm)6.5
Ship width (cm)4.22
HS code8535908040
Country of OriginUS

Product Details:

    • Blackburn ADR25-21

Product Variants

ProductModelStud SizeNumber Of HolesOverall LengthHole SizeBolt Hole SizeConnector TypeMaterialNumber Of ConductorsPrice

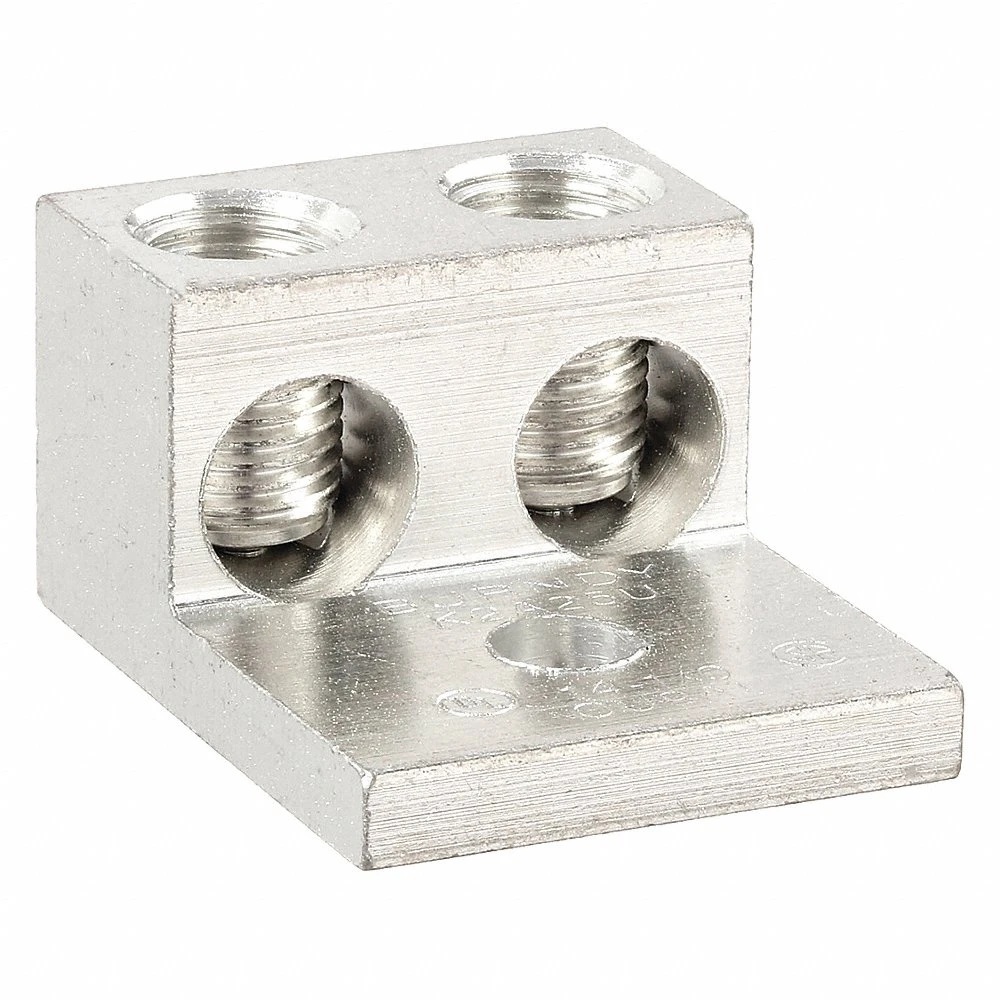

BURNDY K2A25U Two Conductor Lugs 14awg 1.47in | AB6RDT 22C189 K2A25U1/4"11.47"--LugAluminium2€17.53
BURNDY K2A26U Two Conductor Lugs 14awg 1.47in | AB6RDV 22C191 K2A26U1/4"11.47"--LugAluminium2€19.70
BURNDY K2A31U Two Conductor Lugs 6awg 2.88in | AB6RDW 22C192 K2A31U1/2"12.88"--LugAluminium2€70.70
BURNDY K2A36U Two Conductor Lugs 2awg 3.2in | AB6RDX 22C193 K2A36U1/2"13.2"--LugAluminium2€102.96

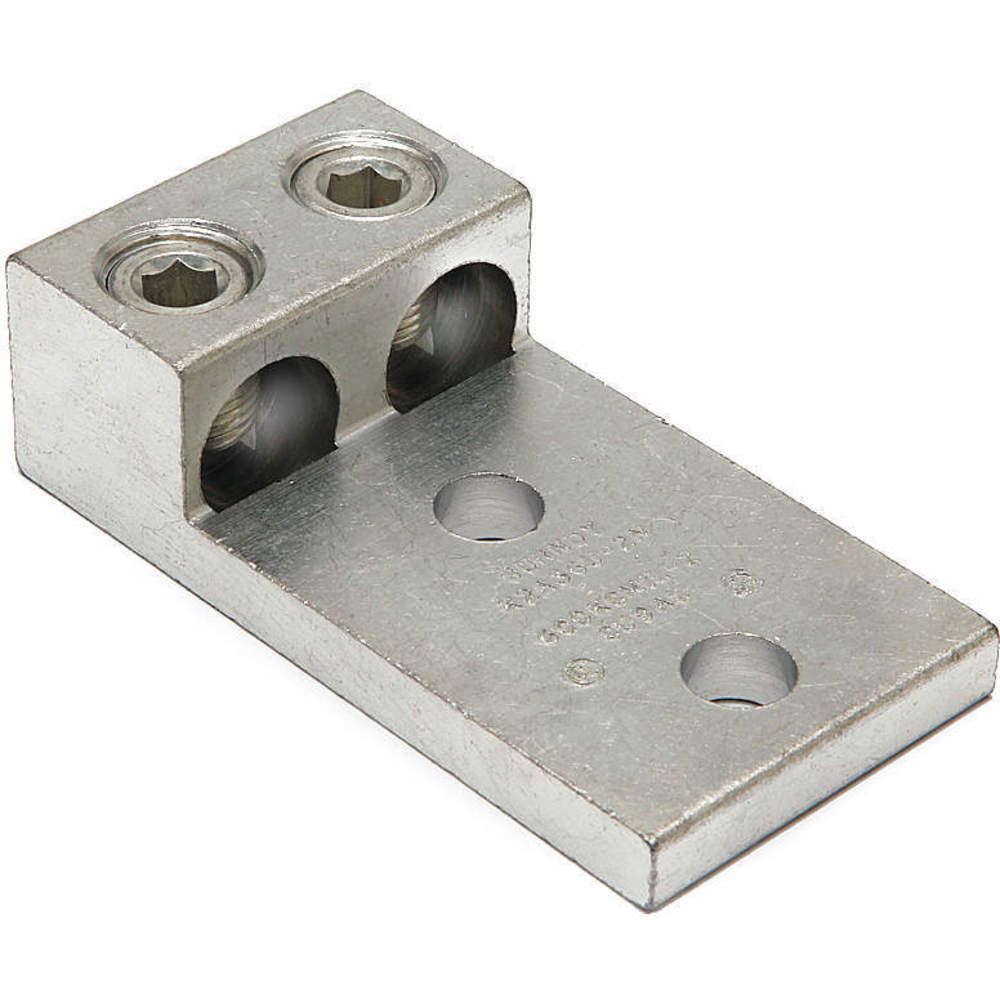

BURNDY K2A36U2N Two Conductor Lugs 2awg 4.69in | AB6RDY 22C194 K2A36U2N1/2"24.69"--LugAluminium2€155.62
BURNDY K2A31U2N Two Conductor Lugs 6awg 4.5in | AB6RDZ 22C195 K2A31U2N1/2"24.5"--LugAluminium2€99.24
BURNDY K2A40U Compression Lug, 300 kcmil, Aluminum | CF4AXT K2A40U1.46"13.38"1/2"45.0" to 48.0"--2€52.28
